OIL AND GAS DRILLS

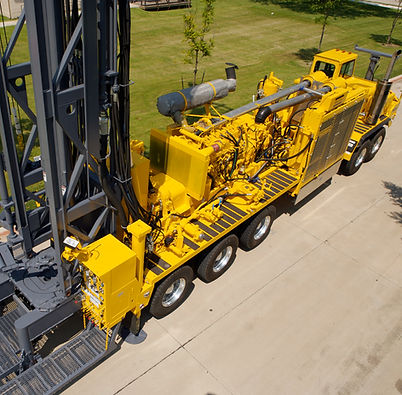

Epiroc RD20 Drill Rig

  • The patented carriage feed system delivers a full 110,000 lb (50,000 kg) or 120,000 lb (54,500 kg) of pullback (depending on the model) while providing rapid feed speeds as well as precise weight and speed control.

  • The tough, mobile, 8 x 4 or 10 x 6 carrier, depending upon the model, is completely self-contained.

  • A 380 HP engine and drive train move the rig down the road at standard highway speeds while providing ample power for off-road maneuverability.

  • The RD20 handles a wide range of drilling applications, including 3-inch (76 mm), 1,500 or 3,000 psi circulation piping.

  • The RD20 handles Range II or Range III (depending on the model) casing with ease.

  • RD20 II and RD20 III handles "RD20" style external flush drill pipe: 4 1/2 in OD x 30 ft lengths.

  • RD 20 XC handles oilfield external upset "Bottleneck" drill pipe 2 7/8 in to 4 1/2 in OD, Range II lengths.



Also available:

  • Drill Rod

  • Stabilizers

  • Subs

  • Floating Subs

  • Adapters

  • Drilling Fluid

DH350 Drill Rig

  • 21' from drill table to ground

  • Walking system capable of lifting full drill string load

  • Travel width < 12’

  • 2 sets of telescoping cylinders to raise mast and substructure

  • Will be able to walk over well head. 4' clearance

  • 48” clearance to catwalk side

  • 30” clearance to powerpack side

  • Estimated weight: 85,000lbs

  • Designed for 13-3/8 10,000 psi BOP

Also available:

  • Drill Rod

  • Stabilizers

  • Subs

  • Floating Subs

  • Adapters

  • Drilling Fluid
